Beam Clamp Components Type BK1
Below are specifications for Type BK1 Beam Clamp Components manufactured by Steel Supply Co.

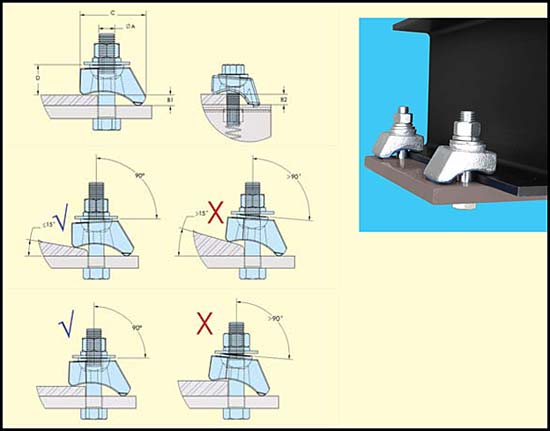

The Beam Clamp Component BK1 is a self adjusting clamp that consists of two parts. The main body provides a recess to allow a hemispherical washer to be seated. This allows the body to adjust between a specified clamping range and as the washer rotates it provides a flat surface for a nut. This mechanism makes the beam clamp component product suitable for clamping to tapered steel of up to 15 degrees. It is also extremely useful for projects where the thickness of steel may vary. The 5/16", 3/8" and 1/2" versions feature a tab at the back edge that can be located in the open ends of strut products, both aiding installation and preventing rotation once installed. Should the maximum clamping range be exceeded, our BF2 and BG2 packers can be used to increase it. Please see page 17 for details.
|
Product Code
|
A - Bolt Diameter | B1 | B2 | C | D | Width | Torque | Tensile SWL (lbs) | Friction SWL (lbs) |
| (ft lb) | (per bolt) | (per 4 bolts) | |||||||
| BK1G08 | 5/16 | 1/8 to 1/2 | 1/8 to 3/8 | 1 5/8 | 11/16 | 1 5/8 | 4 | 281 | X |
| BK1G10 | 3/8 | 1/8 to 5/8 | 1/8 to 1/2 | 1 7/8 | 3/4 | 1 5/8 | 14 | 562 | X |
| BK1G12 | 1/2 | 1/8 to 11/16 | 1/8 to 5/8 | 1 7/8 | 7/8 | 1 5/8 | 51 | 1,652 | 317 |
| BK1G16 | 5/8 | 1/8 to 15/16 | N/A | 2 1/2 | 1 5/16 | 2 | 109 | 2,880 | 762 |
| BK1G20 | 3/4 | 1/8 to 1-3/16 | N/A | 2 7/8 | 1 1/4 | 2 1/4 | 210 | 5,278 | 1,266
|
The Safe Working Loads are based on assemblies tested in typical conditions.
Do not exceed the Safe Working Load (SWL) specified
- Hot Dip Galvanized BS EN ISO 1461
- Manufactured from Ductile Iron to BS EN 1563
- 5 to 1 Factor of Safety
- Lloyds Register approved
- Self adjusting body style
To learn more about our Beam Clamp Component Type BK1 products, or any product in our Steel Connections category, contact us or request a free quote today.
