Slotted Steel Shims
2" Wide
2 Inch Slotted Steel Shims
For 3" wide Structural Steel Shims click here.Any configuration can be made to your specifications (Click Here)

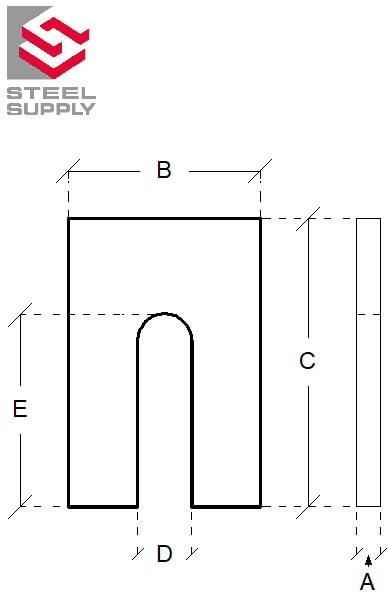

| Item No. | Thickness | Width | Length | Slot Width | Slot Depth |
| A | B | C | D | E | |
| Slot Width 9/16" - Plain Finish | |||||
| 2" Long | |||||
| 152-2 x 1/32 | 1/32" | 2" | 2" | 9/16" | 1-9/32" |
| 152-2 x 1/16 | 1/16" | 2" | 2" | 9/16" | 1-9/32" |
| 152-2 x 1/8 | 1/8" | 2" | 2" | 9/16" | 1-9/32" |
| 152-2 x 1/4 | 1/4" | 2" | 2" | 9/16" | 1-9/32" |
| 3" Long | |||||
| 152-3 x 1/32 | 1/32" | 2" | 3" | 9/16" | 2" |
| 152-3 x 1/16 | 1/16" | 2" | 3" | 9/16" | 2" |
| 152-3 x 1/8 | 1/8" | 2" | 3" | 9/16" | 2" |
| 152-3 x 1/4 | 1/4" | 2" | 3" | 9/16" | 2" |
| 4" Long | |||||
| 152-4 x 1/32 | 1/32" | 2" | 4" | 9/16" | 3" |
| 152-4 x 1/16 | 1/16" | 2" | 4" | 9/16" | 3" |
| 152-4 x 1/8 | 1/8" | 2" | 4" | 9/16" | 3" |
| 152-4 x 1/4 | 1/4" | 2" | 4" | 9/16" | 3" |
| Slot Width 13/16" - Plain Finish | |||||
| 2" Long | |||||
| 157-2 x 1/32 | 1/32" | 2" | 2" | 13/16" | 1-13/32" |
| 157-2 x 1/16 | 1/16" | 2" | 2" | 13/16" | 1-13/32" |
| 157-2 x 1/8 | 1/8" | 2" | 2" | 13/16" | 1-13/32" |
| 157-2 x 1/4 | 1/4" | 2" | 2" | 13/16" | 1-13/32" |
| 3" Long | |||||
| 157-3 x 1/32 | 1/32" | 2" | 3" | 13/16" | 2" |
| 152-3 x 1/16 | 1/16" | 2" | 3" | 13/16" | 2" |
| 152-3 x 1/8 | 1/8" | 2" | 3" | 13/16" | 2" |
| 152-3 x 1/4 | 1/4" | 2" | 3" | 13/16" | 2" |
| 4" Long | |||||
| 152-4 x 1/32 | 1/32" | 2" | 4" | 13/16" | 3" |
| 152-4 x 1/16 | 1/16" | 2" | 4" | 13/16" | 3" |
| 152-4 x 1/8 | 1/8" | 2" | 4" | 13/16" | 3" |
| 152-4 x 1/4 | 1/4" | 2" | 4" | 13/16" | 3" |
