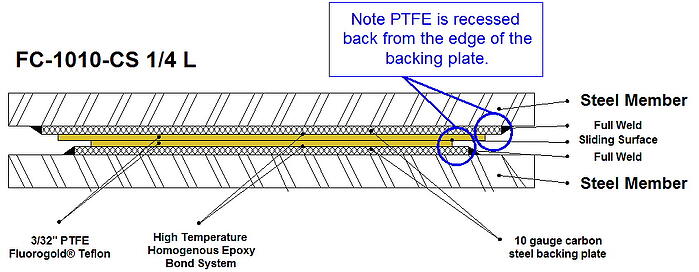

Slide Bearing Assembly with full welded elements.
Upper Element :
3/32" thick Fluorogold® bonded to 10 gauge carbon steel backing plate, full perimeter weld to the structural steel member or sole plate.
Lower Element :
3/32" thick Fluorogold® bonded to 10 gauge carbon steel backing plate, full perimeter weld to the structural steel member or sole plate.
Note: Slide Bearing can have a recessed lip of any width. 1/4" wide is the most common.
Loads : 75 psi to 2,000 psi
Temperature : -320° to +400°
Slide Bearing backing plates can be:
Carbon Steel (CS)
Stainless Steel (SS)
Corten Steel (CT)
Aluminum (AL)
Galvanized Carbon Steel (GL)
Galvanizing can be Hot Dip or Electroplated
Overall height of the Slide Bearing can be increased by increasing the thickness of the element :
FC-1010-CS 10 gauge ( approx 1/8")
FC-1037-CS 3/8" thick plate
FC-1025-CS 1/4" thick plate
FC-1050-CS 1/2" thick plate
FC-10100-CS 1" thck plate
