304 Stainless Shoulder Pattern Nut Eyebolts

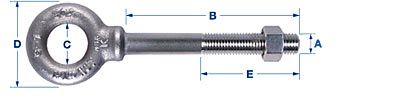

  A B C D E
  Shank Dia.
  & Thread Shank Eye Eye Thread Rated
Stock UNC-2A Length I.D. O.D. Length Capacity Weight
No. +0.09/-0.03 +.06/-0 +0.09/-0.03 +0.09/-0.03 +.06/-0 Lbs.
N2001-2* 1/4-20 2 1/2 1 1-1/2 500 .07
N2001-3* 1/4-20 3 1/2 1 1-1/2 500 .09
N2001-4* 1/4-20 4 1/2 1 2 500 .10
N2001-5* 1/4-20 5 1/2 1 2-1/2 500 .12
N2001-6* 1/4-20 6 1/2 1 3 500 .13
N2002-2-1/4 5/16-18 2-1/4 5/8 1-1/4 1-1/2 800 .13
N2002-3-1/4 5/16-18 3-1/4 5/8 1-1/4 1-1/2 800 .16
N2002-4-1/4 5/16-18 4-1/4 5/8 1-1/4 2-1/2 800 .18
N2002-5 5/16-18 5 5/8 1-1/4 2-1/2 800 .20
N2002-6 5/16-18 6 5/8 1-1/4 3 800 .22
N2003-2-1/2 3/8-16 2-1/2 3/4 1-1/2 1-1/2 1,200 .20
N2003-3 3/8-16 3 3/4 1-1/2 1-1/2 1,200 .21
N2003-4 3/8-16 4 3/4 1-1/2 2 1,200 .25
N2003-4-1/2 3/8-16 4-1/2 3/4 1-1/2 3 1,200 .26
N2003-5 3/8-16 5 3/4 1-1/2 3 1,200 .27
N2003-6 3/8-16 6 3/4 1-1/2 3 1,200 .30
N2003-8 3/8-16 8 3/4 1-1/2 4 1,200 .36
N2003-10 3/8-16 10 3/4 1-1/2 4 1,200 .42
N2003-12-BLANK 3/8 12 3/4 1-1/2 Blank N/A .50
N2003-24-BLANK 3/8 24 3/4 1-1/2 Blank N/A .89
N2005-2 1/2-13 2 1 2 1-5/8 2,200 .39
N2005-3-1/4 1/2-13 3-1/4 1 2 2 2,200 .46
N2005-4 1/2-13 4 1 2 3 2,200 .49
N2005-4-1/2 1/2-13 4-1/2 1 2 3 2,200 .52
N2005-6 1/2-13 6 1 2 3 2,200 .60
N2005-8 1/2-13 8 1 2 4 2,200 .71
N2005-10 1/2-13 10 1 2 4 2,200 .82
N2005-12 1/2-13 12 1 2 4 2,200 .93
N2005-18-BLANK 1/2 18 1 2 Blank N/A 1.28
N2005-24-BLANK 1/2 24 1 2 Blank N/A 1.61
N2007-4 5/8-11 4 1-3/8 2-1/2 3 3,500 .82
N2007-4-1/2 5/8-11 4-1/2 1-3/8 2-1/2 3 3,500 .86
N2007-6 5/8-11 6 1-3/8 2-1/2 3 3,500 .99
N2007-8 5/8-11 8 1-3/8 2-1/2 4 3,500 1.14
N2007-10 5/8-11 10 1-3/8 2-1/2 4 3,500 1.34
N2007-12 5/8-11 12 1-3/8 2-1/2 4 3,500 1.51
N2007-15 5/8-11 15 1-3/8 2-1/2 6 3,500 1.73
N2007-18 5/8-11 18 1-3/8 2-1/2 6 3,500 2.00
N2007-24 5/8-11 24 1-3/8 2-1/2 6 3,500 2.55
N2008-4 3/4-10 4 1-1/2 2-13/16 3 5,200 1.27
N2008-4-1/2 3/4-10 4-1/2 1-1/2 2-13/16 3 5,200 1.34
N2008-6 3/4-10 6 1-1/2 2-13/16 3 5,200 1.53
N2008-8 3/4-10 8 1-1/2 2-13/16 4 5,200 1.77
N2008-10 3/4-10 10 1-1/2 2-13/16 4 5,200 2.03
N2008-12 3/4-10 12 1-1/2 2-13/16 4 5,200 2.28
N2008-15 3/4-10 15 1-1/2 2-13/16 6 5,200 2.61
N2008-18 3/4-10 18 1-1/2 2-13/16 6 5,200 2.98
N2008-24 3/4-10 24 1-1/2 2-13/16 6 5,200 3.75
N2009-5 7/8-9 5 1-3/4 3-1/2 3 7,200 2.46
N2009-6 7/8-9 6 1-3/4 3-1/2 3 7,200 2.65
N2009-8 7/8-9 8 1-3/4 3-1/2 4 7,200 2.92
N2009-10 7/8-9 10 1-3/4 3-1/2 4 7,200 3.29
N2009-12 7/8-9 12 1-3/4 3-1/2 4 7,200 3.65
N2009-18 7/8-9 18 1-3/4 3-1/2 6 7,200 4.62
N2009-24 7/8-9 24 1-3/4 3-1/2 6 7,200 5.67
N2010-6 1-8 6 2 4 3 10,000 3.77
N2010-8 1-8 8 2 4 4 10,000 4.17
N2010-10 1-8 10 2 4 4 10,000 4.63
N2010-12 1-8 12 2 4 4 10,000 5.07
N2010-15 1-8 15 2 4 6 10,000 5.66
N2010-18 1-8 18 2 4 6 10,000 6.33
N2010-24 1-8 24 2 4 6 10,000 7.70
N2012-6 1-1/4-7 6 2-3/16 4-7/16 3 13,500 5.65
N2012-8 1-1/4-7 8 2-3/16 4-7/16 4 13,500 6.25
N2012-12 1-1/4-7 12 2-3/16 4-7/16 4 13,500 7.72
N2012-18 1-1/4-7 18 2-3/16 4-7/16 6 13,500 9.72
N2012-24 1-1/4-7 24 2-3/16 4-7/16 6 13,500 11.88
N2014-6 1-1/2-6 6 2-1/2 5-3/16 3 20,000 8.92
N2014-12 1-1/2-6 12 2-1/2 5-3/16 4 20,000 12.10
N2014-18 1-1/2-6 18 2-1/2 5-3/16 6 20,000 15.22
N2014-24 1-1/2-6 24 2-1/2 5-3/16 6 20,000 17.80
N2016-12 2-4-1/2 12 3-1/4 6-7/8 4 35,000 25.80
