3016 Stainless Shoulder Pattern Nut Eyebolts

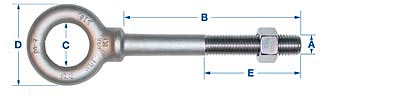

  A B C D E
  Shank Dia.
  & Thread Shank Eye Eye Thread Rated
Stock UNC-2A Length I.D. O.D. Length Capacity Weight
No. +0.09/-0.03 +.06/-0 +0.09/-0.03 +0.09/-0.03 +.06/-0 Lbs.
N2001-SS-4 1/4-20 4 1/2 1 2 500 .10
N2001-SS-6 1/4-20 6 1/2 1 3 500 .13
N2002-SS-2-1/4 5/16-18 2-1/4 5/8 1-1/4 1-1/2 800 .13
N2002-SS-3-1/4 5/16-18 3-1/4 5/8 1-1/4 1-1/2 800 .16
N2002-SS-4-1/4 5/16-18 4-1/4 5/8 1-1/4 2-1/2 800 .18
N2002-SS-6 5/16-18 6 5/8 1-1/4 3 800 .22
N2003-SS-2-1/2 3/8-16 2-1/2 3/4 1-1/2 1-1/2 1,200 .20
N2003-SS-4-1/4 3/8-16 4-1/4 3/4 1-1/2 2 1,200 .25
N2003-SS-6 3/8-16 6 3/4 1-1/2 3 1,200 .30
N2003-SS-12-BLANK 3/8 12 3/4 1-1/2 Blank N/A .50
N2003-SS-24-BLANK 3/8 24 3/4 1-1/2 Blank N/A .89
N2005-SS-4-1/2 1/2-13 4-1/2 1 2 3 2,200 .52
N2005-SS-6 1/2-13 6 1 2 3 2,200 .60
N2005-SS-12 1/2-13 12 1 2 4 2,200 .93
N2005-SS-24-BL:ANK 1/2 24 1 2 Blank N/A 1.61
N2007-SS-6 5/8-11 6 1-3/8 2-1/2 3 3,500 .99
N2007-SS-12 5/8-11 12 1-3/8 2-1/2 4 3,500 1.51
N2007-SS-24-BLANK 5/8 24 1-3/8 2-1/2 Blank N/A 2.54
N2008-SS-6 3/4-10 6 1-1/2 2-13/16 3 5,200 1.53
N2008-SS-12 3/4-10 12 1-1/2 2-13/16 4 5,200 2.28
N2008-SS-24-BLANK 3/4 24 1-1/2 2-13/16 Blank N/A 3.74
N2009-SS-6 7/8-9 6 1-3/4 3-1/2 3 7,200 2.65
N2009-SS-12 7/8-9 12 1-3/4 3-1/2 4 7,200 3.65
N2009-SS-24-BLANK 7/8 24 1-3/4 3-1/2 Blank N/A 5.61
N2010-SS-6 1-8 6 2 4 3 10,000 3.77
N2010-SS-12 1-8 12 2 4 4 10,000 5.07
N2010-SS-24-BLANK 1 24 2 4 Blank N/A 7.63
N2012-SS-6 1-1/4-7 6 2-3/16 4-7/16 3 13,500 5.65
N2012-SS-12 1-1/4-7 12 2-3/16 4-7/16 4 13,500 7.72
N2012-SS-24-BLANK 1-1/4 24 2-3/16 4-7/16 Blank N/A 11.58
N2014-SS-6 1-1/2-6 6 2-1/2 5-3/16 3 20,000 8.92
N2014-SS-12 1-1/2-6 12 2-1/2 5-3/16 4 20,000 12.10
N2014-SS-24-BLANK 1-1/2 24 2-1/2 5-3/16 Blank N/A 17.27
