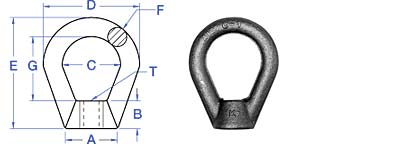

| T | A | B | C | D | E | F | G | |||
| Dia. & | Bail | Rated | ||||||||
| Stock | Thread | Thread | Eye | Eye | Overall | Dia. | I.D. | Capty. | ||
| No. | UNC-2A | Bell | Length | I.D. | O.D. | Length | Thick | Length | Lbs. | Weight |
| EN-3-316SS | 3/8-16 | 7/8 | 5/8 | 1-1/4 | 2 | 2-1/2 | 3/8 | 1-1/2 | 2,700 | .25 |
| EN-5-316SS | 1/2-13 | 7/8 | 5/8 | 1-1/4 | 2 | 2-1/2 | 3/8 | 1-1/2 | 2,700 | .23 |
| EN-7-316SS | 5/8-11 | 1 3/8 | 3/4 | 1 1/2 | 2 1/2 | 3 | 1/2 | 1 3/4 | 5,000 | 0.56 |
| EN-8-316SS | 3/4-10 | 1 3/8 | 3/4 | 1 1/2 | 2 1/2 | 3 | 1/2 | 1 3/4 | 5,000 | 0.55 |
