Clevis Maximums : Grip, Pin, Tap

Specifications

  • Material: C-1035, SA-182-F11, F22, Stainless Steel (See note on Stainless Steel surface rust.)
  • Threads: U.N.C./U.N.F. Class 2B, Right or Left Hand, Metric
  • Finish: Self-Colored, Galvanized, Plated, Electro-Polished
  • Options: Heat Treating, Special Threading
  • Note: Pins Sold Separately – Straight or Headed 100% Domestic Materials, Certifications Provided Upon Request

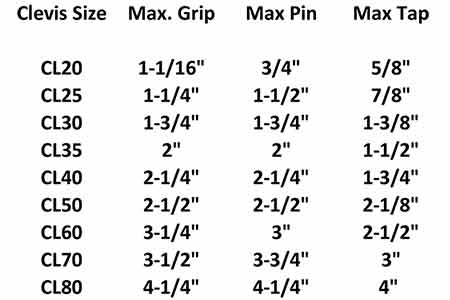

The chart below shows the maximum values for the variables in each Clevis series.

To see all Clevis values, refer back to the Made to Order Clevis Chart.

Clevis Side and Top 600 x 98

Clevis Maximum Values Grip, Pin, Tap 450 x 300



To see all Clevis values, refer back to the Made to Order Clevis Chart.
