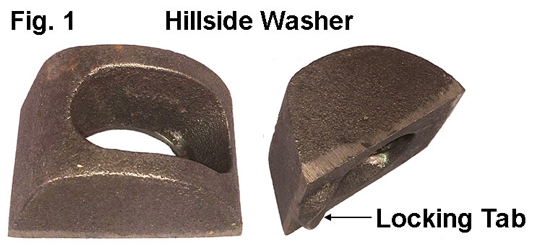

Hillside Washers can function in the basic form shown in Figure 1. All the necessary features are in place, along with the load strength to ensure durable performance.
1 Comment Click here to read/write comments
Tags: Hillside Washers, Turnbuckle Rods, STEEL SUPPLY, Turnbuckles, I-Beam, Thermal Break
Hillside Washers are used when connecting braces that pass through structural members at any angle other than 90°. Unlike inside connections requiring Clevis Rod Assemblies (Fig.1), when the brace passes through the structural member it eliminates the need for Clevises and Clevis Pins.
2 Comments Click here to read/write comments
Tags: Hillside Washers, Clevis, I-Beam
