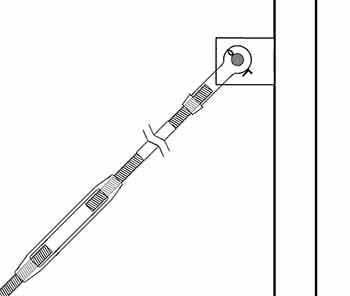

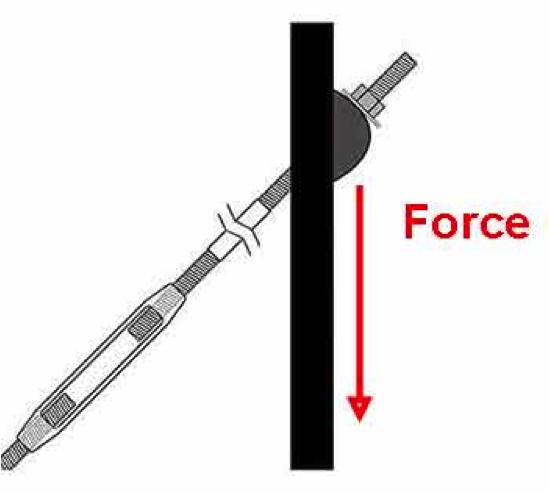

Hillside Washers are used when connecting braces that pass through structural members at any angle other than 90°. Unlike inside connections requiring Clevis Rod Assemblies (Fig.1), when the brace passes through the structural member it eliminates the need for Clevises and Clevis Pins.
Tags: Hillside Washers, Clevis, I-Beam
Stainless Steel Turnbuckle Rods and Clevis Rods have some variations in material that will affect the design and production. The first point to note is the difference in material between the round bar and the hardware. Stainless steel round bar comes in a wide variety of grades. For Structural and Miscellaneous steel fabricating the fundament grade is 303 or 304. Often Clevis Rod and Turnbuckle Rod assemblies are specified leaving the fabricator the option of using either.
Tags: Clevis Rods, Clevis, STEEL SUPPLY, Turnbuckles
Grinnell Standards are a way of limiting the variables when designing a clevis rod or turnbuckle rod. While clevis rods and turnbuckle rods can be manufactured in any diameter and set of specifications, keeping it simple is always desirable for the structural steel fabricator. The main structural concern is tensile strength. Round bar diameter is the primary feature that controls tensile strength and the remaining components are designed around that.
Tags: Clevis Rods, Hanger Rods, Sag Rods, Turnbuckle Rods
The steel wedge is an extremely important aspect of any construction process. Another way to understand the power of the steel wedge is by understanding the structural bolt. At first, it might seem as though that the two products have nothing in common, but in reality they are the same thing.
Tags: Wedges, Anchor Bolts, Steel Wedges, Steel Wedge
The charts below show the results of tests that were performed on our wedge inserts on October 23, 2007. As a note, these results are for reference only. This is not a test of wedge inserts currently in stock and should not be considered as an accurate representation of the current wedge inserts in stock.
Tags: Askew Head Bolts, Wedge Insert, Wedge Inserts, Hot Dip Galvanizing
Slide bearings are a very important aspect of the construction process, but the jargon involved can often be very confusing. There are some basic terms that need to be understood when discussing the methods of constructing a Slide Bearing or Teflon® Bearing Pad. The many different terms associated with slide bearing surface are listed below, while next week’s article will cover backing plate options.
Steel Wedges are among the most basic and yet unique products our steel fabricating customers use. They are used for almost everything, from separating heavy plates in the shop, to with an erector lift for extremely heavy objects, to shimming stair stringers.
Tags: Wedges, Steel Wedges, Steel Wedge, Steel Shims, STEEL SUPPLY
In the case of relieving angles, the typical shim requirements used are almost always require a single slotted. The stock version of this is 3” wide.
Tags: Steel Shims
For anyone looking to looking to create a post hole before laying down concrete, the process can be a nightmare. Some steel fabricators will use PVC pipe or a hard rubber tube to create the hole, but that rarely ever solves the problem. Often, it can be difficult to keep the pipe or tubing in position while pouring the concrete, and after it can be a headache to remove the tubing once the concrete has set. However, steel fabricators no longer have to worry about setting down post holes—the EZ Sleeve is here!
Tags: EZ Sleeve
