Masonry Anchors
Plain Steel / Zinc Coated / HDG / Stainless Steel
In a Masonry to Structural Steel application, the Anchor is welded or PowerShot to a column or beam. The structural members are usually carbon steel so it raises the question: Why would Galvanized or Stainless Anchors be required. While the point can be debated most fabricators are reluctant to alter the plans, or willing to spend the time attempting to have the callout altered.
For this reason, The Steel Supply Company stocks standard masonry anchors in all variations of material and for any unique requirement the ability to produce to exact special-order specifications is always available.
Fig. 1
The standard Weld-On Rod Anchor. 1/4" Diameter x 9” Long with 3/8” Rise.
Available as Plain Steel, Mill Galvanized, Hot Dip Galvanized, Stainless Steel
Not shown: The 8’ Continuous Weld-On Rod Anchor
Available as Plain Steel, Mill Galvanized, Hot Dip Galvanized
Fig. 2

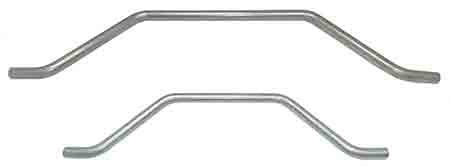

Fireproof Coating Rod Anchors. Designed to extend beyond any Fibrous Fireproof Coatings.
Shown are 3/8” diameter rods with 3” rise (upper) and 2” rise (lower).
These are stock items and any variation or material can be made to order.
Fig. 3

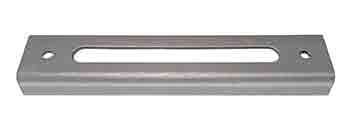

Weld-On Slotted Channel
Due to the extended surface that may be welded Fabricators are sensitive about welding Mill Galvanized or Hot Dip Galvanized, however that is often what is called for on the plans.
To accommodate any requirement, Slotted Channel is in stock in Plain Steel, Mill Galvanized, Hot Dip Galvanized and Stainless Steel
The Slotted Channel is usually welded in place at the fabricating shop however it is supplied with 2 holes to allow for PowerShot applications also.
Not Shown is the 8” Continuous Slotted Channel
Fig. 4

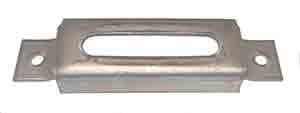

The 4” Long Slotted Channel provides access to tighter spaces and irregular mounting surfaces such a block walls. OAL is 6”.
Supplied with tabs and 2 holes as shown for PowerShot applications.
The various systems employed in Anchoring Masonry to Steel or Masonry to Masonry all require an additional insert. To ensure your project remains on schedule and on budget The Steel Supply Company also carries a wide selection of Inserts, in stock and available for immediate shipment.
With and questions, requirements or to develop a made to order Masonry Anchor and/or Insert,
call or email today.
